Signage Solutions Multi-Touch Display

86BDL3552T/00

-{discount-value}

Signage Solutions Multi-Touch Display

Name: Multi-Touch Display
Brand: Philips
SKU: 86BDL3552T/00

86BDL3552T/00

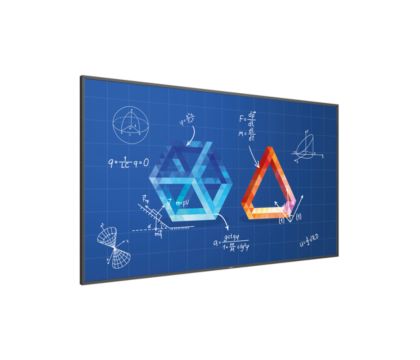

Interactive classroom display

Maximise engagement and inspire collaboration with an interactive Philips T-Line display. Featuring an anti-glare toughened glass, these Android powered displays are made to withstand heavy daily usage and feature up to 20 touchpoints

Unfortunately this product is no longer available

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

Signage Solutions Multi-Touch Display

Interactive classroom display

Unfortunately this product is no longer available

This product qualifies for VAT relief

If you're eligible for VAT relief on medical devices, you can claim it on this product. The VAT amount will be deducted from the price shown above. Look for full details in your shopping basket.

Signage Solutions Multi-Touch Display

Interactive classroom display

Make it a bundle and save Make it a bundle and get 1 item for free

All your needs covered in one purchase

Bundle price

Skip this

Choose one of the following: Choose one of the following products:

Add accessories

Multi-Touch Display

- {discount-value}

Total:

OPS slot allows for PC embedding without cabling

Integrate a full-power PC or Android-powered CRD50 module directly into your Philips Professional Display. The OPS slot contains all the connections you need to run your slot-in solution, including a power supply.

Operate, monitor and maintain with CMND & Control

Run your display network over a local (LAN) connection. CMND & Control allows you to perform vital functions like controlling inputs and monitoring display status. Whether you're in charge of one screen or 100.

Multi-touch technology capable of 20 touchpoints

Create a memorable interactive experience with up to 20 touchpoints at the same time. Perfect for collaborative and competitive applications, this display connects your audience with any content - making it ideal for education, public venues, corporate, hospitality, and retail settings. The touch panel is HID compliant, providing true plug-and-play operation.

Whiteboard mode built-in

Inspire agile collaboration with whiteboard mode. Simply activate this feature to turn your display into a blank canvas that can be drawn on by multiple users by hand or with dedicated display markers. Everything on screen can then be captured for easy printing or file sharing.

Wireless screen sharing & advanced collaboration

Display four feeds on the one screen. Wireless screen sharing allows you to connect multiple devices at the same time for quick content switching when you need it. Use your existing Wi-Fi network to instantly and securely connect devices, or use our optional HDMI interact dongles to cast directly to the screen without needing to connect to your secured/protected network.

Android: Run your own app or choose your favorite app to run

WIth Android OS integrated into the display, you can work with the most developed OS on the planet and save your own app directly into the display. Or, choose from the large library of Android apps and play content from there. With the built-in scheduler, you can daypart your apps and content based on your customer and time of day and with the auto orientation feature, showing content in portrait or landscape is as simple as turning the display.

Technical Specifications

Picture/Display
Diagonal screen size (inch)

85.6 inch

Diagonal screen size (metric)

217.4 cm

Panel resolution

3840 x 2160

Optimum resolution

3840x 2160 @ 60Hz

Brightness

420 cd/m²

Contrast ratio (typical)

1200:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

8 ms

Pixel pitch

0.4935x0.4935 mm

Display colors

1.07 billion

Viewing angle (horizontal)

178 degree

Viewing angle (vertical)

178 degree

Picture enhancement
- 3/2 - 2/2 motion pull down
- 3D Combfilter
- Motion compens. deinterlacing
- 3D MA deinterlacing
- Dynamic contrast enhancement
- Progressive scan
Operating system

Android 9

Panel technology

IPS

Surface treatment

Anti-Glare coating
Connectivity
Video input
- Display Port1.2 (x1)
- DVI-I (x 1)
- HDMI 2.0 (x4)
- USB 2.0 (x2)
- USB 3.0 (x2)
- USB-C
Audio input

3.5mm Jack (x1)

Audio output

3.5mm Jack (x2)

Other connections
- OPS
- micro SD
External control
- RJ45
- RS232C (in/out) 2.5 mm jack
- IR (in/out) 3.5 mm jack
Video output
- DVI - D (x1)
- DisplayPort 1.2 (x1)
- HDMI 2.0 (x2)
- USB 2.0 (x2)
Supported Display Resolution
Computer formats
- 1600 x 1200, 60Hz
- 1360 x 768, 60Hz
- 1024x768, 60,70Hz
- 1152 x 864, 60, 70, 75Hz
- 1152 x 900, 66Hz
- 1280 x 720, 60,70Hz
- 1280 x 768, 60Hz, 75Hz
- 1280 x 800, 60,75Hz
- 1280 x 960, 60Hz
- 1280x1024, 60,67,75Hz
- 1366 x 768, 60Hz
- 1400 x 1050 ,60, 75Hz
- 1440 x 1050, 60Hz
- 1440 x 900, 60, 75Hz
- 1600 x 900, 60Hz
- 1680 x 1050, 60Hz
- 1920 x 1080, 60Hz
- 1920 x 1200, 60Hz
- 3840 x 2160, 24,25,30,60Hz
- 640 x 350, 70Hz
- 640 x 480, 60, 67, 72, 75Hz
- 800 x 600, 56, 60, 72, 75Hz
- 832 x 624, 75Hz
- 848 x 480, 60Hz
- 960x720, 75Hz
Video formats
- 1080p, 50, 60Hz
- 720p, 50, 60Hz
- 1080i, 50, 60Hz
- 480p, 60Hz
- 4K x 2K
- 576p, 50Hz
- 720p, 60Hz
Dimensions

Set Width

1961.00 mm

Set Height

1132.30 mm

Set Depth

80.5mm(D@wall mount) / 108.4mm(D@speaker cover) mm

Set Width (inch)

77.20 inch

Set Height (inch)

44.58 inch

Set Depth (inch)

3.17(D@wall mount) / 4.27 (D@speaker cover) inch

Bezel width

16.30 mm(even)

Product weight (lb)

163.8 lb

Product weight

74.3 kg

Wall Mount

600(H)x400(V) mm, M8

Smart Insert mount

100mm x 100mm, 6xM4L6
Convenience
Placement
- Landscape (18/7)
- Portrait (12/7)
  Portrait (12/7)
Keyboard control
- Hidden
- Lockable
Signal loop through
- RS232
- IR Loopthrough
- DisplayPort
Network controllable
- RJ45
- RS232
Energy saving functions

Smart Power

Screen saving functions

Low Bright

Ease of installation

Smart Insert

Other convenience

Carrying handles

Picture performance

Advanced color control

Remote control signal

Lockable
Power

Standby power consumption

<0.5 W

Mains power

100 - 240V~, 50 - 60Hz, 7.5A

Consumption (Typical)

390 W

Consumption (Max)

650 W

Power Saving Features

Smart Power

Energy Label Class

G
Operating conditions

Temperature range (operation)

0 ~ 40 °C

Temperature range (storage)

-20 ~ 60 °C

Relative humidity

20 ~ 80%(Operational),5 - 95%(Storage) %

Altitude

0 ~ 3000 m

MTBF

50,000 hour(s)
Sound

Built-in speakers

2 x 20W RMS
Accessories
Included accessories
- Remote Control
- Batteries for remote control
- Quick start guide
- RS232 cable
- AC Power Cord
- HDMI cable
- IR sensor cable (1.8M)
Included Accessories
- RS232 daisy-chain cable
- Cleaning cloth (x1)
- DVI-D cable (1.8m )
- M2 Screw (x2)
- M3 screw (x2)
- Philips logo (x1)
- Touch Pen (x2)
- Touch USB (x1)
- USB Cover (x1)
Optional accessories

Cast to dongle
Multimedia Applications
USB Playback Audio
- AAC
- M4A
- WMA
- MP3
USB Playback Video
- MKV
- MP4
- MPEG
- MPG
- TS
- VOB
- ASF
- AVI
- DAT
- FLV
- WEBM
- WMV
USB Playback Picture
- BMP
- JPEG
- PNG
- JPG
Miscellaneous
On-Screen Display Languages
- English
- French
- German
- Spanish
- Polish
- Turkish
- Russian
- Italian
- Simplified Chinese
- Traditional Chinese
- Arabic
- Japanese
- Danish
- Dutch
- Finnish
- Norwegian
- Portuguese
- Swedish
Regulatory approvals
- CE
- RoHS
- BSMI
- CB
- ETL
- FCC, Class A
- PSB
- EMF
- EAC
Warranty

3 year warranty
Interactivity
Multi-touch technology

Advanced infrared touch

Plug and play

HID compliant

Protection glass
- Anti-Glare
- Tempered safety glass
Touch points

20 simultaneous touch points
Internal Player
CPU

MTK5680

GPU

DDR4 4GB

Memory

4GB RAM

Storage

32 GB eMMc

Wifi
- AP(WC0SR2511-88112BU)
- STA(WCT5GM2511MT7668AU)

What's in the box?

Other items in the box

Remote Control
Batteries for remote control
Quick start guide
RS232 cable
AC Power Cord
HDMI cable
IR sensor cable (1.8M)
Optional accessories: Cast to dongle
