    LED Display

    27BDL9112L/00

    LED Display

    27BDL9112L/00

    Bezel-free LED display wall.

    • Built-in rear cable cover. Easy cable management
    • High performance gold-wire LEDs
    • Front-access LED modules. Easy maintenance and servicing
    • Join multiple cabinets to achieve higher resolution
    • Create bezel-free video walls of any shape or size
    See all benefits

    LED Display

    Bezel-free LED display wall.

    • Built-in rear cable cover. Easy cable management
    • High performance gold-wire LEDs
    • Front-access LED modules. Easy maintenance and servicing
    • Join multiple cabinets to achieve higher resolution
    • Create bezel-free video walls of any shape or size
    See all benefits

    Bezel-free LED display wall.

    • Built-in rear cable cover. Easy cable management
    • High performance gold-wire LEDs
    • Front-access LED modules. Easy maintenance and servicing
    • Join multiple cabinets to achieve higher resolution
    • Create bezel-free video walls of any shape or size
    See all benefits

    LED Display

    Bezel-free LED display wall.

    • Built-in rear cable cover. Easy cable management
    • High performance gold-wire LEDs
    • Front-access LED modules. Easy maintenance and servicing
    • Join multiple cabinets to achieve higher resolution
    • Create bezel-free video walls of any shape or size
    See all benefits

    Similar products

    See all L-Line series

    Make it a bundle and save Make it a bundle and get 1 item for free

    All your needs covered in one purchase

    Bundle price

    Skip this

    Choose one of the following: Choose one of the following products:

    Add accessories

    LED Display

    Philips shop price

    Total:

    Limitless

    Fill their imagination. Create seamless displays. With an L-Line Professional LED Display Wall, the possibilities are endless. The bezel-free design, wide viewing angle, and breathtaking brightness ensure authoritative imaging. At any size.

    LED display. Superb image quality. Perfect uniformity

    Create bezel-free video walls of any shape, size, or resolution. The modular design of Philips Professional LED cabinets means you can adapt to any space. Build vast, immersive installations or assemble intriguing patterns. Easily create video walls that flow seamlessly around doorways and other openings.

    Built-in rear cable cover. Easy cable management

    Your Philips Professional LED Display features built-in rear cable covers to keep power and data cables tidy. Display cabinets can also be daisy-chained, for both power and data. Allowing you to minimize clutter, speed up installation.

    High performance gold-wire LEDs

    Philips Professional LED Displays use high-performance gold-wire LEDs, which are energy-efficient and cost-effective. Light is brighter, and the LEDs last longer.

    Create bezel-free video walls of any shape or size

    Simply connect multiple LED display cabinets to create the resolution you want-whether it's 4K, 8K, or even higher. Compared to LCD screens, LED displays boast higher refresh rates that enable smoother images. Whatever the application, you'll thrill them with crystal-clear picture quality.

    Front-access LED modules. Easy maintenance and servicing

    Internal electronics are easy to access for servicing or maintenance. Each of the eight LED modules in a cabinet can be removed using a dedicated magnetic JIG tool, which lifts the module out from the front.

    Technical Specifications

    • Picture/Display

      Brightness before calibration
      900 nits
      Brightness after calibration
      800 nits
      Color temperature default
      6500±500 K
      Color temperature adjust range
      4000~9500 K (by software)
      Viewing angle (horizontal)
      160  degree
      Viewing angle (vertical)
      160  degree
      Brightness Uniformity
      >=97%
      Contrast ratio (typical)
      >=3000:1
      Calibration(brightness/color)
      Supported
      Refresh rate(Hz)
      1920~3840
      Frame frequency (Hz)
      50 & 60
      Aspect ratio
      16:9
      Picture enhancement
      Wide color gamut display
      Placement
      Landscape
      Usage
      24/7 Hrs, Indoor
    • Convenience

      Signal control loop through
      RJ45
      Ease of installation
      • Guide pins
      • Light weight
      • Locking mechanism for cabinet
      Power loop through
      For 230V environments: 8 cabinets or less, for 110V environments: 4 cabinets or less
    • Operating conditions

      Temperature range (operation)
      -20~45  °C
      Temperature range (storage)
      -20~50  °C
      Humidity range (operation)[RH]
      10~80%
      Humidity range (storage) [RH]
      10~85%
    • Power

      Max Power consumption (W)
      <=160 W  W
      Consumption (Typical)
      <=54  W
      Input voltage
      AC100~240V (50 & 60Hz)
      BTU Value m2
      2,624 BTU/m2
    • Miscellaneous

      Warranty
      3 years
      Regulatory approvals
      • FCC SDOC, Part 15
      • EMC Class B
      • EN55032
      • EN55035
      • EN61000-3-2
      • EN61000-3-3
      • IEC/UL60950
      • IEC/UL62368
      • IEC62471
      • RoHS
    • Cabinet

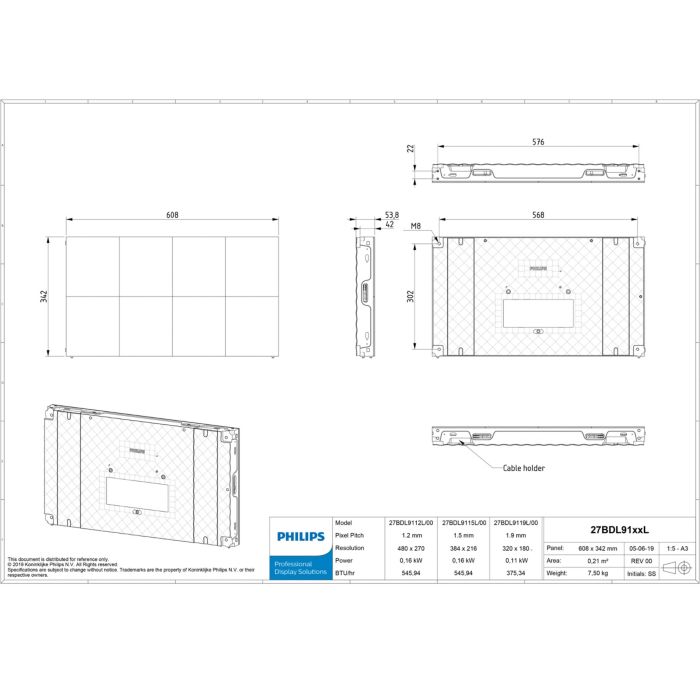

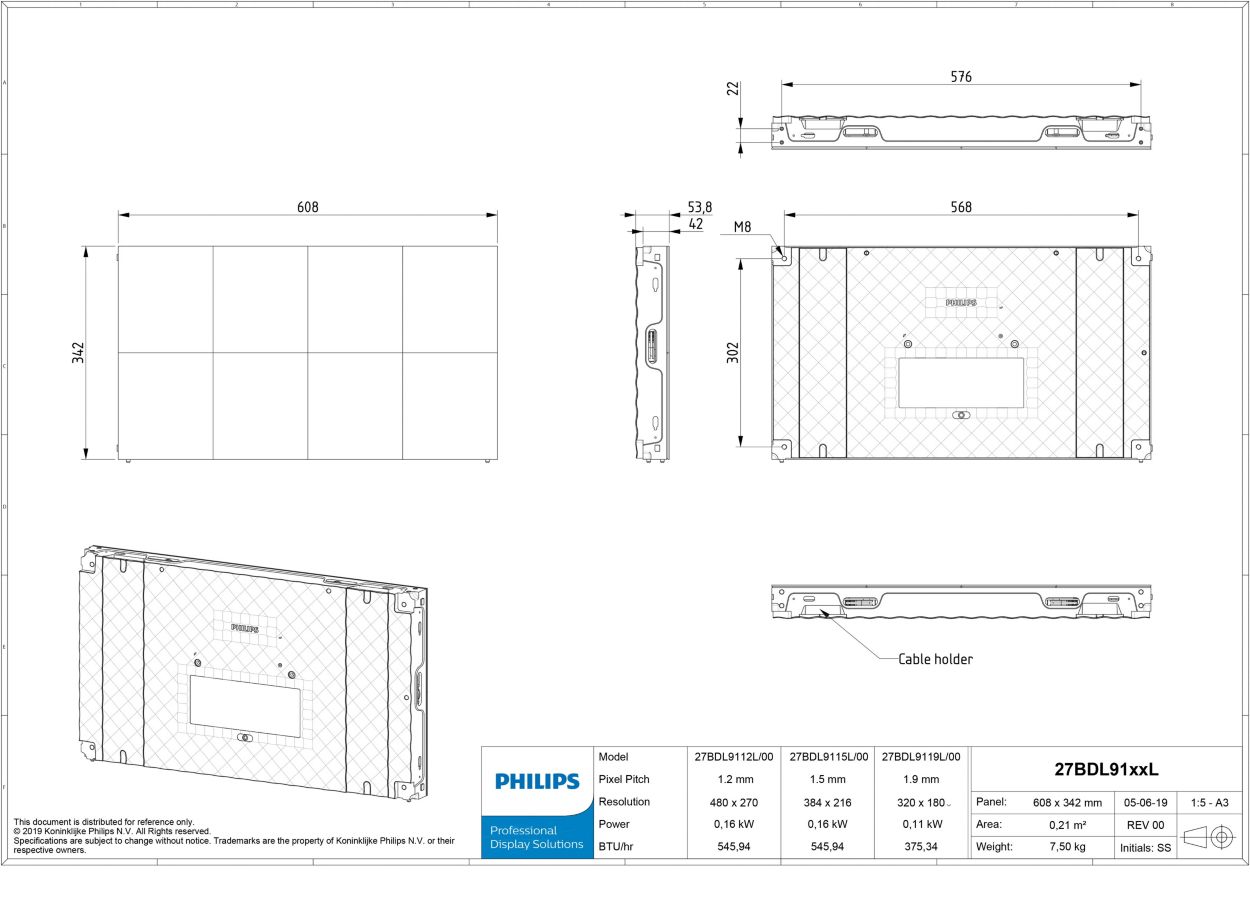

      Cabinet size (mm)
      608x342x55
      Cabinet diagonal (inch)
      27.5
      Cabinet resolution (W x H)
      480×270
      Weight (KG)
      8(+/-0.4Kg)
      Cabinet pixels ( Dot )
      129,600
      Cabinet area (m2)
      0.2079
      Power connector
      In/Out(C14/C13)
      Data connector
      RJ45
      Cabinet construction
      Die-Casting Aluminum
      Receiving card quantity
      2 pcs
      Receiving card spec.
      A7S
      Receving card brand
      Novastar
    • Module

      LED type
      SMD 1010 Gold wire
      Pixel constitution
      1R1G1B
      LED lifetime(Hrs)
      100,000
      Pixel pitch (mm)
      1.266
      Module size (WxHxD in mm)
      152x171x10
      Module resolution (WxH pixels)
      120x135
    • Accessories

      Power loop through cable
      1 pcs
      LAN cable (RJ45, CAT-5)
      1 pcs
      Common connecting piece
      4 pcs
      Screw bolt
      4 pcs (M8*20) (Inner Hexagon Screw)
      QSG
      1 pcs
