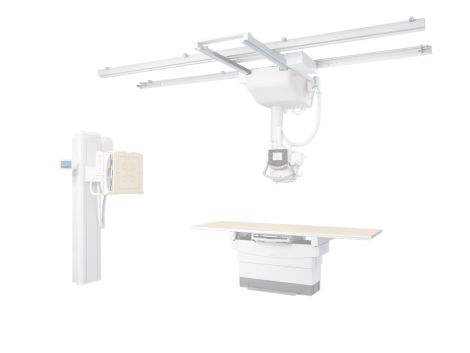

DigitalDiagnost

Specifications

Tube carrier

Tube carrier

Ceiling suspension CS	Motorized ceiling suspended tube carrier with four-part telescopic column
Movements	Longitudinal and transverse
LCD display	Wide 16.5cm (6.5”) LCD information display and control buttons for easy and quick handling
Longitudinal travel	3.44 m (11’ 3.4”)/with rail extensions 6.14 m (20’ 1.7”)
Transverse travel	Standard version 1.5 m (4’ 11”)/Long version 3.22 m (10’ 6.7”)
Vertical travel	1.66 m (5’ 5.2”)

Tables

Tables

Height-adjustable table TH	Height-adjustable patient table with a large range of movements. Convenient handling supports quick patient positioning. Easy patient transfer in recumbent or seated positions.
Tabletop	Floating sandwich-design tabletop with Getalit overlay Floating tabletop allows for fast and easy patient positioning. Floating sandwich-design tabletop with carbon fiber overlay
Detector	With fixed detector or a SkyPlate in the table tray
Grid	Oscillating or fixed grid
Dimensions	(l x w): 240 x 75 cm (7’10.5” x 29.5”) and optional 240 x 85 cm (7’10.5” x 33.5”) (l x w): 260 x 75 cm (8’ 6.4” x 29.5”) 220 x 67 cm (7’2.6” x 26.4”)
X-ray transparent area	173 x 67 cm (5’8.1” x 26.4”)
Single side suspended table TH-S	Single side-suspended, height-adjustable table. Ideally suited for use with moveable vertical stand VM – the multi-purpose stand with swiveling tube arm.
Height of tabletop above floor	87 cm (34.3”)
Max. patient weight	225 kg (496 lbs)
Foot pedal	Foot pedal operation allows close proximity to the patient
Table base	Has an optional swivel function to enhance patient and system accessibility
Length of X-ray transparent area	2.08 m (6’ 9.9”)
Height adjustment	50.3 to 90.3 cm above floor (19.8” to 35.6”), motorized adjustment

Vertical stands

Vertical stands

Angle of detector tilt	Horizontal axis: -20° to +90°/vertical axis+45° to -23°, motorized tilting
Vertical stand VS	Motorized vertical stand with fixed or SkyPlate. Can be adjusted with a left and right hand control unit and/or by wireless remote control.
Tiltable detector	Optional, tilt angle: –20° to +90°, motorized tilting Detector is tiltable and moveable, e.g. beneath the single side-suspended table
Grid	Oscillating or fixed grid, can store up to two grids within the detector unit
Exposure control	Five automatic exposure control chambers
Controls	Two control panels and remote control
Dimensions	Height: 2.08 m (6’ 9.9“) Height: 2.48 m (8’1.6”)
Horizontal movement range	Motorized 3.48 m (11’4.8”)/non-motorized 3.71 m (12’2.1”)
Vertical movement of detector unit	30 cm to 1.80 m (11.8” to 5.1”) (central beam)
Vertical movement range	35 cm to 1.85 m (13.8” to 6’ 1”) (central beam)
Moveable vertical stand VM	Moveable vertical stand with multi-purpose swiveling arm for full application flexibility with just one digital - 43x43 cm (17x17”) detector. Can be adjusted with a left and right hand control unit and by wireless remote control.
Swiveling range of multi-purpose arm	0° to 90° (right or left operator side)

Detectors

Detectors

Size	43 cm x 43 cm. Large size provides high projection flexibility for virtually all patient sizes. 35 cm x 43 cm /14"x17" can carry out difficult projections
Fixed detector	Integrated into the TH table and vertical stands.
Resolution	up to 3.5 lp/mm, 143 μm pixel size up to 3.4 lp/mm, 148 μm pixel size
SkyPlate	Convenient handling with cable-free design.
Charging	Detector only charges when being placed in battery charger
Robust design	Guarantees a drop height of 70 cm (28")

Imaging solutions

Imaging solutions

SkyFlow	Scatter Correction algorithm for thorax x-rays. Automatic image contrast enhancement. For all patient types - even bariatric. Automatic operation, shorter exam times.
Philips Computed Radiography (PCR Eleva)	We offer several CR solutions for different departmental set-ups with single or multi-slot high-resolution readers.
Eleva workspot	Workflow software offers central operating workspot for the entire X-ray examination. 19" LCD color touch screen monitor with 1280 x 1024 resolution. Intuitive Eleva user interface allows touch screen use - even with gloves. UNIQUE image processing software for fast and excellent results.
Software	SkyPlate sharing for systems without SkyPlate. SkyFlow Dose Reporting in DICOM Structured Report format DICOM package plus Automatic image stitching Clinical QC

Tubes and generators

Tubes and generators

Generators	Wide range of applications. Available configurations: 65 kW, 80 kW. Features include Anatomically Programmed Radiography (APR), tube overload protection, and automatic exposure control.
X-ray tubes	Dual-focus rotating anode tube: focal spots: 0.6mm/1.2mm. Excellent lifetime with tube overload protection. Compatible with VarioFocus (optional).
