52", Full HD 1080p 52PFL7403D/27


How to connect several external devices to Philips TV?

Your TV is equipped with several types of connections. The type of connection you should use to connect a certain device depends on which features of the particular device you want to use.

Note: for the connection of a PC refer to the FAQ on this subject.

  • The most complete connection available on your TV is the HDMI connection. This connection accepts high definition (HD) signals from external devices, such as a digital Set Top Box, a DVD-player or a game console such as the PS3.

  • If you want to connect more than one of this kind of external devices, the YPbPr- (or component-, or YUV-) connection is a good choice.

  • The next best option are the S-Video and CVBS connections, which enable you to connect devices that are not equipped with a HDMI or YPbPr connection, such as a video camera or photo camera.

After connecting several devices you select any one of them with the [Source] button on the remote control of your TV. When you press this button repeatedly you select the external connections alternatively.

  • Connect an audio device (home cinema set, amplifier) to the ‘AV OUT L R’ connection at the back of the TV to hear the sound of the TV through your audio system.

  • Connect headphones to the side connector and the TV loudspeaker will be automatically muted. Adjust the headphone volume using the volume button on the remote control.

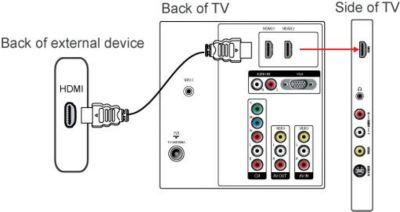

HDMI connection

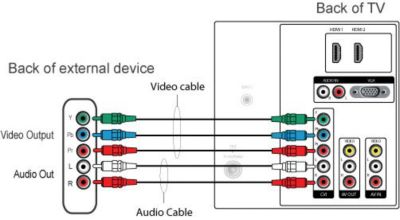

YPbPr- (or component-, or YUV-) connection

S-Video and CVBS connection

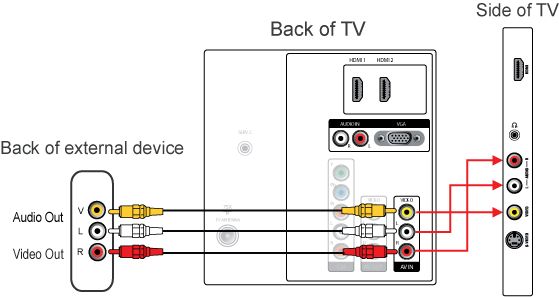

CVBS connection

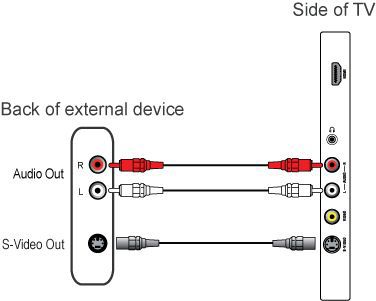

S-Video connection

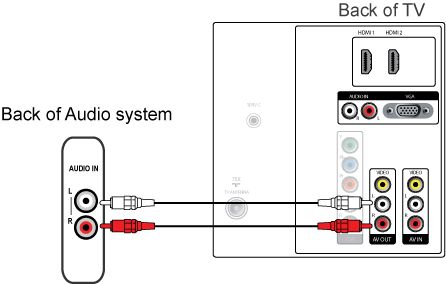

Audio device connection

Headphone connection

The information on this page applies to the following models: 52PFL7403D/27 , 32PFL3403D/85 , 52MF438B/27 , 47PFL3603D/27 , 32PFL5403/55 , 42MF438B/27 , 42PFL3603D/27 , 52PFL5603D/27 , 52PFL3603D/27 , 47PFL7403D/27 , 47PFL5603D/27 , 42TA648BX/37 , 42PFL7403D/27 , 42PFL5603D/27 , 42PFL5332/45 , 32PFL5332/45 . more less
