    How to connect several external devices to Philips TV?

    Published on 2016-12-29

    Your TV is equipped with several types of connections. The type of connection you should use to connect a certain device depends on which features of the particular device you want to use.

    Note: for the connection of a PC refer to the FAQ on this subject.

    • The most complete connection available on your TV is the HDMI connection (Digital signal). This connection accepts high definition (HD) signals from external devices, such as a digital Set Top Box, a DVD-player or a game console such as the PS3.

    • If you want to connect more than one of this kind of external devices, the YPbPr (also called component or YUV) connection (Analog signal) is a good choice.

    • The two Scart connections (Analog signal) on this TV have the same characteristics and accept RGB and CVBS signals. The RGB signals offer a higher picture quality than CVBS signals. This TV does not have a video out therefore it is not possible to record the program from the Scart connection.

    • The next best option are the S-Video and CVBS connections (Analog signal), which enable you to connect devices that are not equipped with a Scart, HDMI or YPbPr connection, such as a video camera or photo camera.

    After connecting several devices you select any one of them with the [Source] button on the remote control of your TV. When you press this button repeatedly you select the external connections alternatively. If the source is HDMI or Scart, the TV will automatically switch to the source input.

    Alternately, you may add the new device(s) to the home menu and select the device via the home menu. If a device is no longer connected to the TV, you can remove it from the home menu.

    To add a new device:

    1. Select [Add new device] on the home menu and press the [OK] button.
    2. A message appears, prompting you to add a new device.
    3. Select [Start] and press [OK].
    4. Follow the on-screen instructions to select the type of device and where it is connected.
    5. When the guide is completed, select [Close] and press [OK].
    6. A new device icon is added to the home menu.

    To remove, select the device to be deleted from the home menu>press the [Options] button>select [Remove this device]>press [OK]> A message appears, prompting you to remove the device>Press [OK].

    • Connect an audio device (home cinema set, amplifier) to the ‘AUDIO OUT L R’ or ‘SPDIF OUT’ connection at the back of the TV to hear the sound of the TV through your audio system.

    • Connect headphones to the side connector. Adjust the headphones volume using the headphones volume in the TV menu and press the [Mute] button on the remote control to mute the TV loudspeaker.

    • Connect a USB memory device to the side USB connector. Your TV supports playback of multimedia files in JPEG (Photos), MP3 (Music) and Video files.

    Portable hard discs are only supported as a mass storage device without any multimedia capabilities. If your portable hard disc comes with multimedia capabilities, you have to connect your hard disc as a standard peripheral device.

    If the above solution does not help, you may refer to the Philips Connectivity Guide on the Contact & support page, which will assist you in making all the necessary connections.

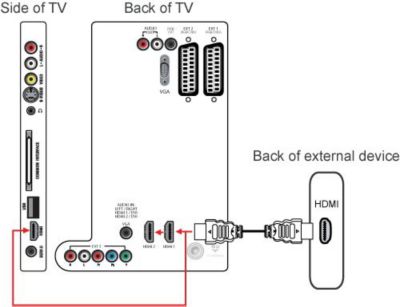

    HDMI connection

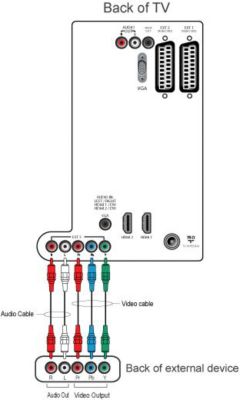

    YPbPr (also called component or YUV) connection

    Scart">Scart connection

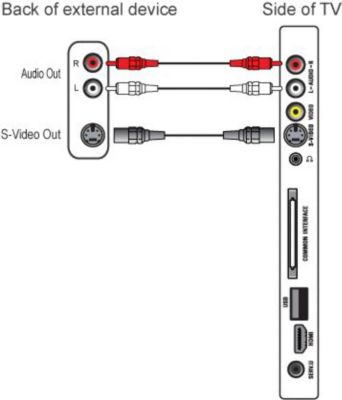

    S-Video connection

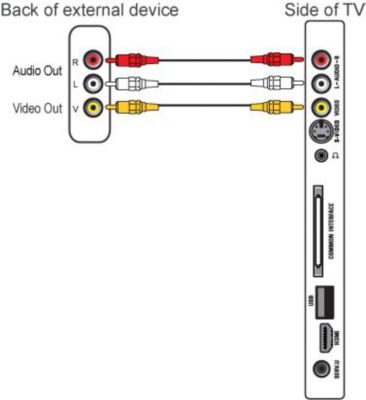

    CVBS connection

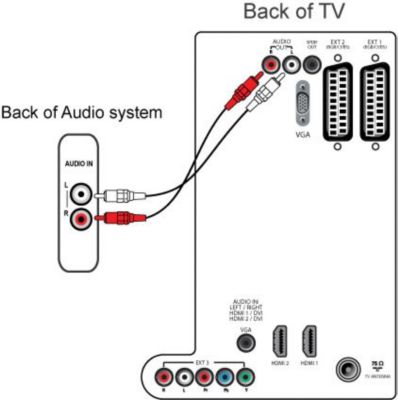

    AUDIO OUT L R connection

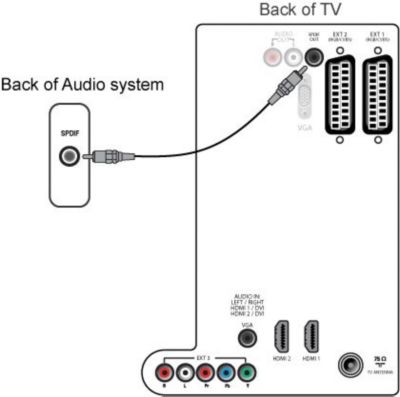

    SPDIF connection

    Headphones connection

    The information on this page applies to the following models: 32PFL7694H/12 .
